Project Overview

Nashua - Merrimack - Bedford 13761

This project proposes to improve the capacity of the F.E.E.T. by providing of at least three lanes in each direction from a point beginning approximately 2,000 feet north of the Exit 8 overpass bridge in Nashua, north to the I-293 interchange in Bedford. This requires widening three separate segments of the highway as identified below.



Click Here for Larger Image

Southern Segment (Nashua and Merrimack) Project 13761A


The southern segment of the F.E.E.T. Widening Project begins approximately 2000 feet north of the Exit 8 overpass bridge in Nashua and runs northerly for approximately 1.5 miles, ending approximately 2000 feet south of the Exit 10 overpass bridge in Merrimack.

A Map Showing the Location of the Southern Segment

Detailed Plan of Project 13761A

The two bridges over Pennichuck Brook (a reservoir) require replacement due to their advanced age, deteriorating structural elements, and the need to widen them to three lanes in each direction to accommodate the new wider roadway. Work along the causeway leading to the bridges has been minimized in order to avoid impacts to the reservoir. Pennichuck Brook is an environmentally sensitive area and is one of the drinking water sources for the City of Nashua. Careful attention to erosion control and stormwater management will be included in the design and construction.

A portion of the Exit 10 southbound on-ramp and northbound off-ramp will require reconstruction, and will be reduced in width as a result of removing the toll plazas.

Stormwater treatment facilities will be constructed as part of this project.

The construction cost of this project is estimated to be $33.2 million with work anticipated to begin as early as the Summer of 2024.

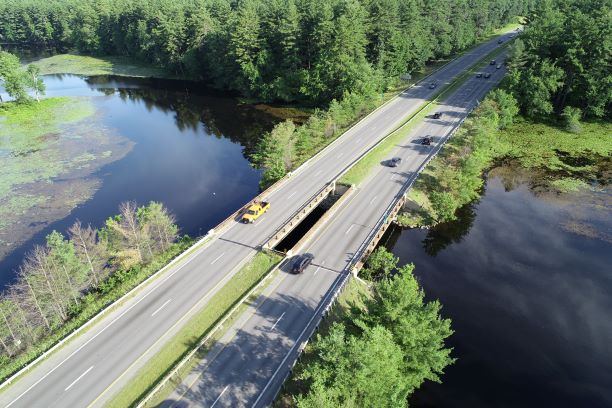

F.E.E.T. crossing Pennichuck Brook
(view looking north)

F.E.E.T. crossing Pennichuck Brook
(view looking north)

F.E.E.T. adjacent to Pennichuck Brook
(view looking south)

F.E.E.T. crossing Pennichuck Brook
(view looking north)

Middle Segment (Merrimack) Project 13761B Bridge Replacements


Two overpass bridges between Exit 11 and Exit 12 will require replacement due to their age and their lengths (spans) are not sufficient to accommodate the additional lane to be added in each direction on the F.E.E.T. underneath these bridges. The bridges carry Baboosic Lake Road and Wire Road over the F.E.E.T. The Baboosic Lake Road Bridge is on the State's Red List, meaning that it is in need of repair or replacement. Sidewalks will be provided on both sides of the new Baboosic Lake Road Bridge and the north side of the Wire Road Bridge. Both roads are town-owned and town-maintained.

A Map Showing the Location of These Bridges

Detailed Plan of Project 13761 B - Baboosic Lake Road

Detailed Plan of Project 13761 B - Wire Road

The construction cost of this project is estimated to be $21.7 million, with work anticipated to begin as early as Spring of 2025.


F.E.E.T. crossing Pennichuck Brook (view looking north)

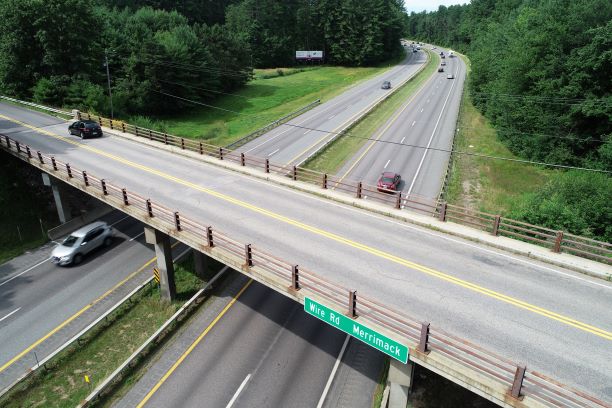

F.E.E.T. Wire Road Bridge over I-293
(view looking south)

F.E.E.T. adjacent to Pennichuck Brook (view looking south)

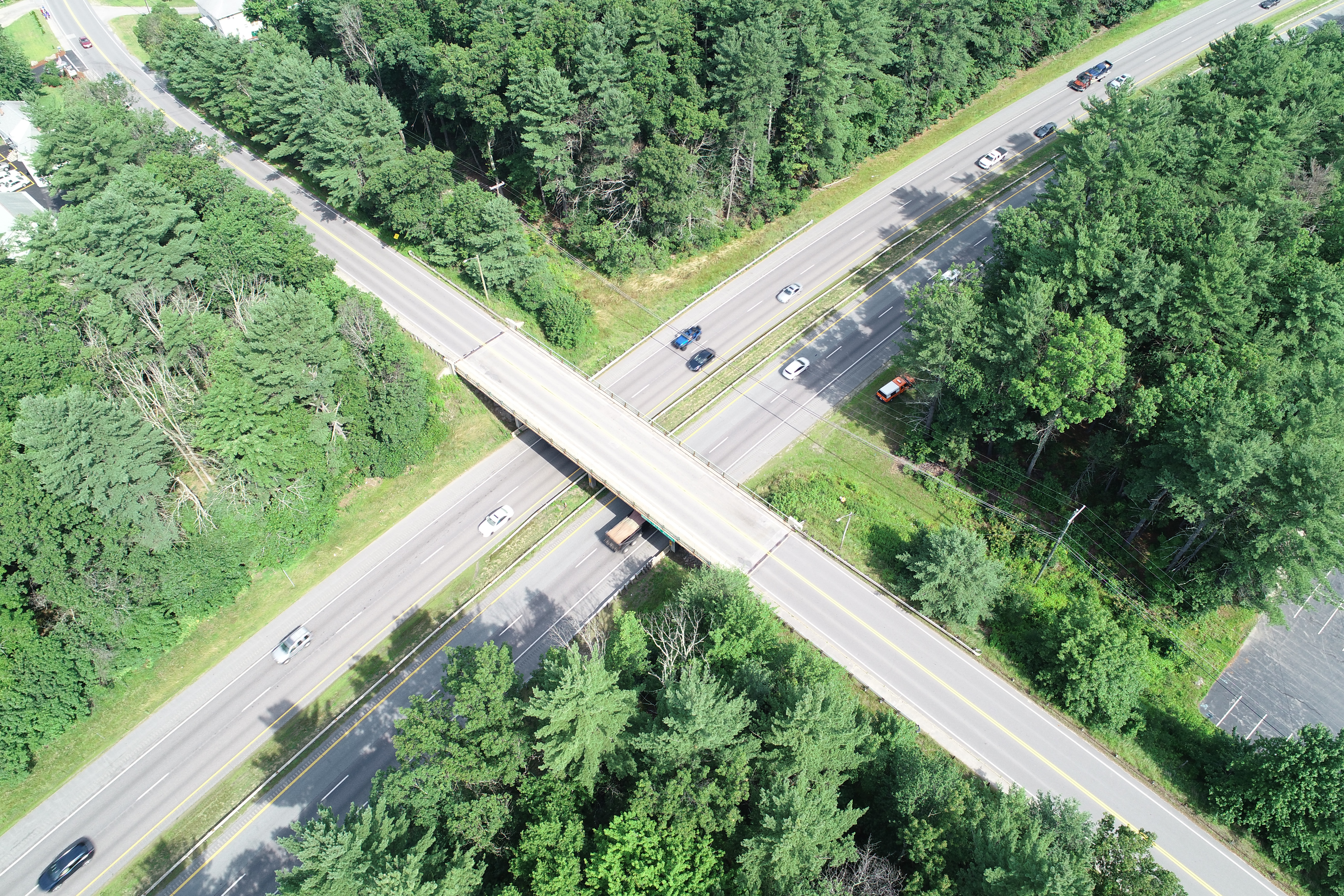

F.E.E.T. Baboosic Lake Road over I-293
(view looking north)

Middle Segment (Merrimack) Projects
13761C and 13761E


The middle segment begins just north of the bridge over Greeley Street/Continental Boulevard at Exit 11 and runs northerly for approximately 5.3 miles, ending approximately one mile south of the Bedford Toll Plaza. This segment is broken into two construction projects (13761C and 13761E) and is located entirely within the Town of Merrimack.

A Map of the Location of the Middle Segment

Detailed Plan of Project 13761C (Coming Soon)

Detailed Plan of Project 13761E

13761C

The 13761C project includes the area from Greeley Street/Continental Boulevard to a point just north of Exit 12. Portions of the Exit 11 northbound on-ramp and southbound off-ramp will require modifications to meet current ramp design standards. Portions of the Exit 12 ramps will also require reconstruction to meet current ramp standards.

The F.E.E.T. bridge over Greeley Street/Continental Boulevard will have some minor repair work completed as part of this project. The F.E.E.T. bridge over the Souhegan River was reconstructed in 2011 as part of a previous NHDOT project and is not anticipated to be impacted.

The bridge that carries the F.E.E.T. over Baboosic Brook (just north of the Wire Road overpass) is undersized and does not meet the standards for hydraulic capacity. In addition, it will require widening to accommodate the new third lane in each direction. A new structure is proposed that will provide a much larger opening, improving stream flow and providing a wildlife crossing location while accommodating the wider roadway section.

The bridge that carries Bedford Road over the F.E.E.T. at Exit 12 already spans far enough to accommodate the widening of the Turnpike.

Stormwater treatment facilities will be constructed as part of this project.

As part of this work six sound barriers will also be constructed.

The construction cost of this project is estimated to be $120.3 million with work anticipated to begin as early as the Summer of 2025.


13761E

The 13761E project contains the remaining portion of the middle segment and includes the area from a point just north of Exit 12 ending at a point approximately one mile south of the Bedford Toll Plaza.

In addition to widening the roadway the culvert carrying Dumpling Brook under the F.E.E.T. will be replaced.

Stormwater treatment facilities will be constructed as part of this project.

As part of this work one sound barrier will also be constructed.

This project was advertised in February 2023 and work will begin in Summer 2023 with an estimated construction cost of $23.9 million.

F.E.E.T. crossing Pennichuck Brook(view looking north)

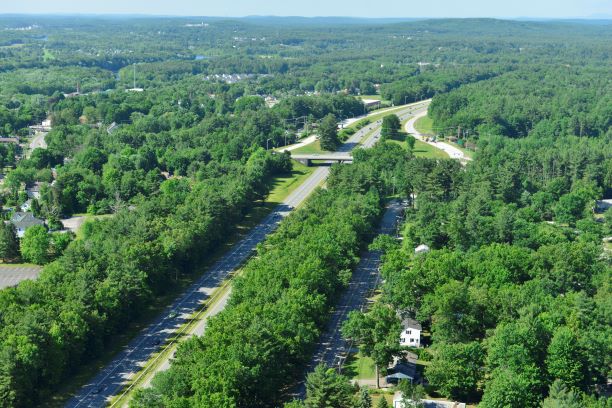

F.E.E.T. near Exit 12 in Merrimack
(view looking south)

F.E.E.T. adjacent to Pennichuck Brook(view looking south)

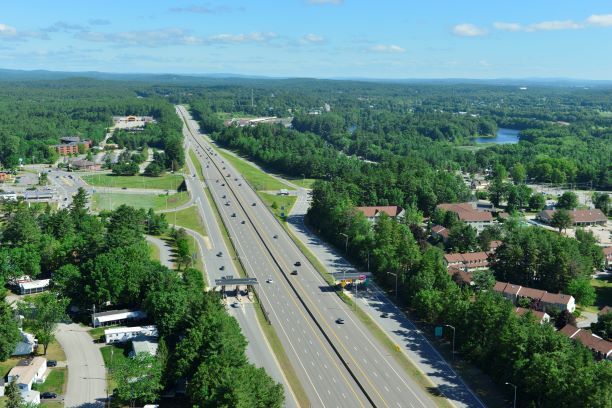

F.E.E.T. near Exit 11 in Merrimack
(view looking north)

Northern Segment (Bedford) Contract 13761D


The northern segment begins approximately 0.6 miles south of the US Route 3 overpass bridge and runs northerly for approximately 1.3 miles, ending at the southbound off ramp to NH Route 101 and the northbound on ramp from NH Route 101 within the I-293 interchange.

A map of the Location of the Northern Segment

Detailed Plan of Project 13761D

The southern limit of this segment will match into the F.E.E.T. widening completed as part of the Manchester Airport Access Road Project in 2011.

Stormwater treatment facilities will be constructed as part of this project.

The construction cost of this project is $22.1 million and work began in the Spring of 2022.


F.E.E.T. crossing Pennichuck Brook (view looking north)

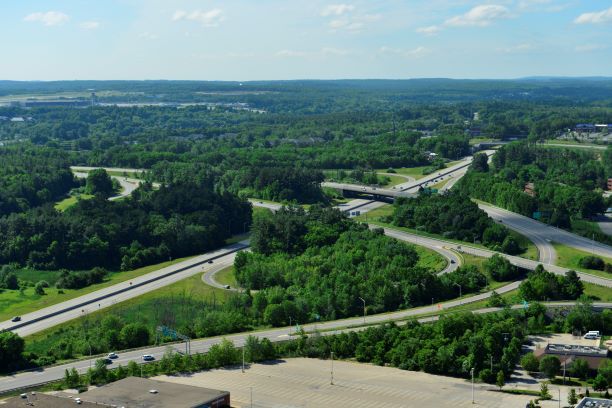

F.E.E.T. I-293 Interchange (Looking South)

F.E.E.T. adjacent to Pennichuck Brook (view looking south)

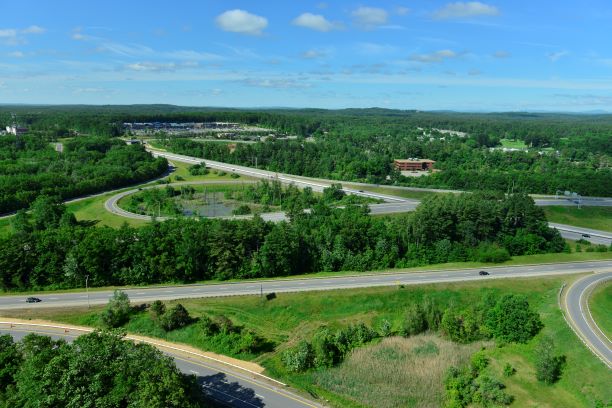

F.E.E.T. I-293 Interchange (Looking South)

Project Costs

The proposed cost of each project in 2023 dollars is as follows:

SEGMENT

LOCATION

LENGTH

COST

Southern
13761A

Exit 8 to Exit 10 (Nashua/Merrimack)

1.5 miles

$33.2 million
(Estimated)

Middle
13761B

Baboosic Lake Road and Wire Road (Merrimack)

0.65 miles

$21.7 million
(Estimated)

Middle
13761C

Exit 11 to North of Exit 12 (Merrimack)

4.4 miles

$128.3 million
(Estimated)

Middle
13761E

North of Exit 12 to Manchester Airport Access Road Project (Merrimack)

0.9 miles

$23.9 million

Northern
13761D

Manchester Airport Access Road Project to I-293 Diverge (Bedford)

1.3 miles

$22.1 million

PE/ROW 13761

Project Wide

8.2 miles

$25.8 million
(Estimated)

Total Estimated Cost:

$247.0 million
